Angles & Flats

Precision-rolled angles and flats designed for structural frameworks, transmission towers, and industrial applications. Available in equal and unequal configurations.

Type Equal / Unequal

Size 25mm – 200mm

Standard IS 2062

Certification BIS Certified

Get Quote

View Specs

Scroll

About This Product

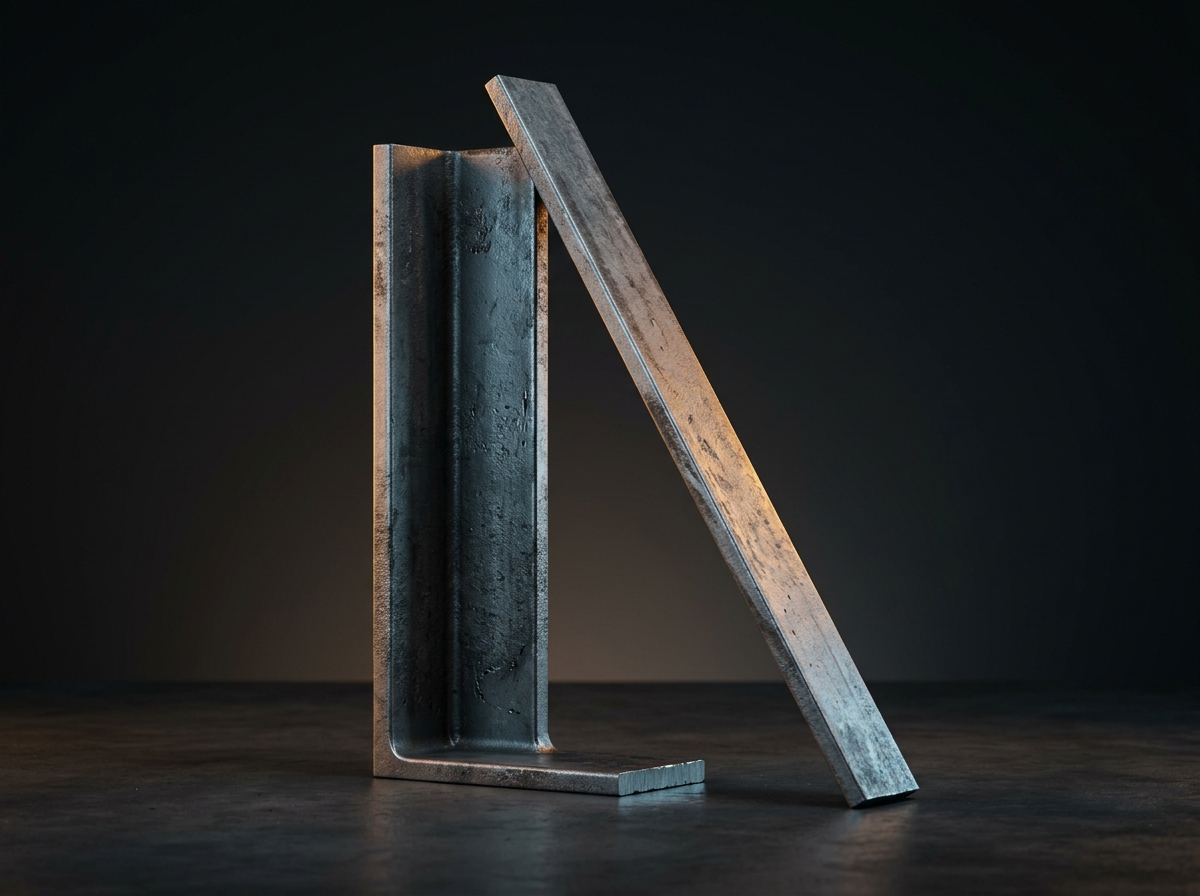

GR Steels Angles & Flats

GR Steels Angles & Flats are precision hot-rolled structural sections manufactured to IS 2062 standards. Designed for load-bearing frameworks, transmission towers, and industrial fabrication — delivering dimensional accuracy and consistent mechanical properties.

Dimensional Precision

Hot-rolled to tight tolerances for perfect fitment in structural frameworks and fabrication assemblies.

IS 2062 Certified

Every batch tested and certified to IS 2062 E250/E350 standards with complete mill test certificates.

Wide Range Available

Equal angles from 25mm to 200mm and flats in multiple widths — ready stock for immediate dispatch.

Structural Advantage

Built for Load-Bearing Performance

Our angles feature an L-shaped cross-section that provides exceptional resistance to bending and torsional forces. The uniform thickness across both legs ensures consistent load distribution in structural applications.

Equal Angles

Both legs of equal length — ideal for trusses, bracing, and symmetrical structural connections.

Unequal Angles

Different leg lengths for specialized applications — lintels, frames, and custom fabrication needs.

Material Properties

Superior Weldability & Strength

Manufactured from E250 and E350 grade mild steel, our angles and flats offer excellent weldability, machinability, and forming characteristics — making them the preferred choice for structural engineers and fabricators.

250+ Yield Strength (MPa)

410+ Tensile Strength (MPa)

23% Min. Elongation

Excellent weldability without pre-heating
Easy to cut, drill, and machine on site
Can be hot-dip galvanized for corrosion protection
Consistent cross-section for predictable performance

Product USPs

Why Choose GR Steels Angles

Every angle and flat from GR Steels is manufactured to exacting standards for structural reliability.

Tight Tolerances

Precision-rolled to IS 808 dimensional standards for perfect fitment in every application.

Corrosion Resistant

Clean mill finish suitable for painting, powder coating, or hot-dip galvanizing.

Easy Fabrication

Excellent machinability — easy to weld, drill, cut, and bend for custom requirements.

Ready Stock

Wide range of sizes available in stock for immediate dispatch across Karnataka.

Mill Test Certificates

Complete documentation with every order — chemical analysis and mechanical test reports.

Multiple Grades

Available in E250 and E350 grades to match your specific structural requirements.

Technical Data

Product Specifications

Size (mm)	Thickness (mm)	Weight (kg/m)	Type
25 x 25	3	1.12	Equal Angle
40 x 40	5	2.97	Equal Angle
50 x 50	5	3.77	Equal Angle
65 x 65	6	5.87	Equal Angle
75 x 75	6	6.83	Equal Angle
100 x 100	8	12.10	Equal Angle
150 x 150	10	22.90	Equal Angle
200 x 100	10	23.00	Unequal Angle
25 x 3	3	0.59	Flat
50 x 6	6	2.36	Flat
75 x 8	8	4.72	Flat
100 x 10	10	7.85	Flat

IS 2062 Compliant

BIS Certified

Where It's Used

Key Applications

Structural Frameworks

Load-bearing frames, trusses, and columns for commercial and industrial buildings requiring precise dimensional accuracy.

Towers & Transmission

Electrical transmission towers, telecom masts, and communication structures demanding high strength-to-weight ratio.

Fabrication & Manufacturing

Custom fabricated structures, machine frames, support brackets, and general engineering applications.
